Recommended for kitchens catering up to 20 cups of boiling and 30 cups of chilled water at any given time. Suitable for small to medium sized offices, shops or factories.
| PRODUCT CODE: | EBC 20/30 |
| PRICE: | $3,565.22 (excl GST) |

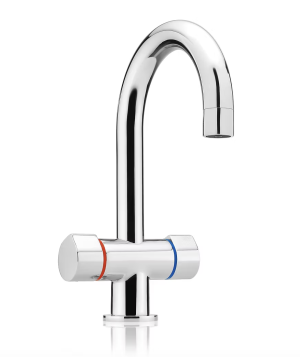

Twin Lever Tap
The Duo tap dispensers both boiling and chilled water from the same faucet. This vented push through mechanism, requires no pumps, switches or solenoids.
Boiling Unit
Our units have no moving parts, instead we utilise water pressure with a venturi to deliver a reliable source of boiling water.
Arctic Chiller
Choose either 30 or 80 cups delivery of chilled and filtered water. These efficient designs are compact for use under bench but quiet in operation.
Filter
We include a filter kit with every unit to ensure the most pure and great tasting water supply. Adding a filter extends the service period and the life of the unit.
| Product Code |
Power/ Volts |
Boil Unit | Chiller | Power Supply Requirements |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | Number of cups at once |
Cups Recovery per hour |
Litres Capacity |
Dimensions (mm) | Number of cups at once |
Litres Capacity |
Power/ Volts |
Dimensions (mm) | |||
| EBC 10/30 | 240, 50Hz | 1.8 | 10 | 90 | 1.5 | 450H 150W 150D | 30 | 6 | 240, 50Hz | 290H 210W 410D | 2 x 3-pin power socket |
| EBC 20/30 | 240, 50Hz | 2.4 | 20 | 120 | 2.5 | 340H 248W 305D | 30 | 6 | 240, 50Hz | 290H 210W 410D | 2 x 3-pin power socket |
| EBC 40/30 | 240, 50Hz | 2.4 | 40 | 120 | 5 | 480H 248W 305D | 30 | 6 | 240, 50Hz | 290H 210W 410D | 2 x 3-pin power socket |
Note: Recommended staff numbers are based upon pouring 200 ml cups without interruption.
| Box 1 | Box 2 |
|
1 x EBE Boiling Unit 1 x EB WP30 Duo Boil/Chill Tap 1 x EB FM 350 kPa PLV 1 x EB 316 brass fitting kit 1 x Boiling water warning label 1 x UBFKI 10B - 10” Water Filter Kit |
1 x EC 30 Chiller Unit 2 x EB 400 John Guest Straight Connectors
|
PRODUCT CODE: EB WP30
The Twin Lever Tap dispenses both boiling and chilled water from the same tap. Read more...
PRODUCT CODE: EB 300
Connects to PLV on Ecoboil under bench combo units. Read more...
PRODUCT CODE: EB 400
For connection points on Ecoboil under bench chiller units and under bench filters. Read more...
PRODUCT CODE: EB 500
John Guest 1/4" water filter tube, high pressure food grade. Read more...
PRODUCT CODE: EB 809
Heavy duty electronic power timer, can be programmed for required use 24/7. Read more...
PRODUCT CODE: EB 801
The IntelliSwitch saves you money by switching the power off outside business hours. Read more...
Our warranty starts from the date of installation; five years on the storage body, one year for parts/tapware and labour.
